數據參數
| 觸點參數與繼電器特性 | |
| 最大額定功率 Max. Rated Power | 100W |
| 最大切換電壓 Max.Switching Voltage | 1000VDC |
| 最大切換電流 Max.Switching Current | 2A |
| 最大負載電流 Max Carry Current | 10A |
| 最大接觸電阻 Max.Contact Resistance | 150mΩ |
| 額定負載（阻性負載）Rated load | 10mVDC,10uA 1000VDC,1mA |
| 最大靜電電容 Max capacitance | 0.5pF |
| 最小絕緣電阻 Min insulation resistance | 1010Ω |
| 電氣壽命 Electrical endurance | Pulse 10A：1.5ms/ON- 15msOFF 108次 1000VDC,1.5mA 5*106次 |
| 觸點材質 Contact materia | Rh銠 |
| 觸點形式 Contact form | 線圈參數 | ||||||
| 額定線圈電壓 Rated coil voltage | 最大線圈電壓 Max coil voltag | 額定電流 Rated Current | 線圈電阻 Coil Resistance | 動作電壓 Pull-In Voltage | 釋放電壓 Drop-Off Voltage | 標稱線圈功率 Nominal Coil Power | |
| 1A | （VDC） | （VDC） | （mA） | (±10%Ω) | (Vmax) | (Vmin) | (mW) |
| 5 | 7.5 | 62.5 | 80 | 3.5 | 0.5 | 313 | |
| 12 | 16 | 25.2 | 475 | 8.4 | 1.4 | 303 | |
| 24 | 30 | 13.3 | 1800 | 16 | 2.9 | 320 | |

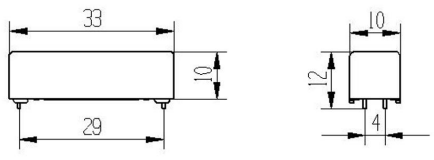

艾禮富PH2B1A101K-65K高壓干簧繼電器外形圖
